DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp

Product Categories

Guangzhou Mankun Electronic Co., Ltd.

Contact Now

Name: DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp
Brand: MANKUN
Price: 1 USD

Brand Name : MANKUN

Model Number : 15550

Place of Origin : China

MOQ : 500PCS

Payment Terms : Negotiable

Supply Ability : 100000pcs per month

Delivery Time : 7-15 work days

Packaging Details : neutral package

Certification : UL,CE.Rosh

Color temperature : 4000K

Emitting color : Natural White

Chip material : Cree

Power : 50W

Color rendering index(ra) : 80

Luminous flux(lm) : 6500LM

Size : 223mm*49mm

Voltage : DC48V

Contact Now

DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp

DC48V 4 Lens Lamp 50W Led Module Street Light Injection LED Street Lighting

Features:

Lumileds LEDs, single unit’s damage won't affect others' normal work;
The most complete optical engine in the world;
Multiple lighting distributions available;
Wide power range: 40W, 50W, 60W;
IP68 - highest waterproof level, hot pluggable, easy for installation and replacement;
Independent intellectual property rights;
Easy tool onsite maintenance and repair;
5-year limited warranty.

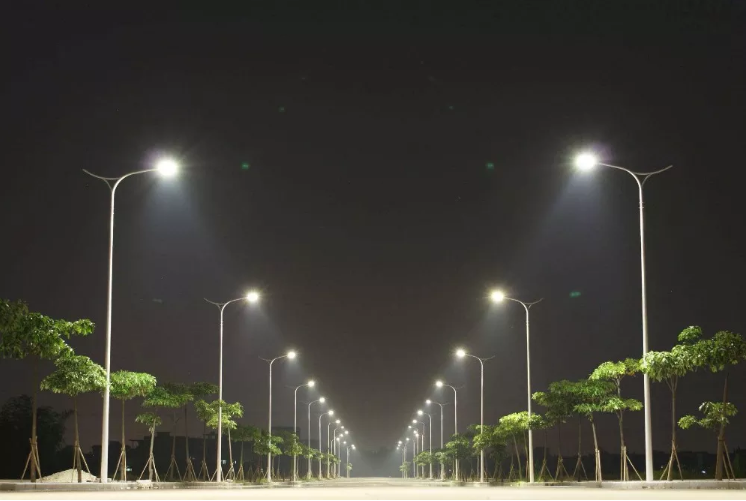

street light
high bay lights
tunnel lights,
flood/spot lights
Traditional retrofit light

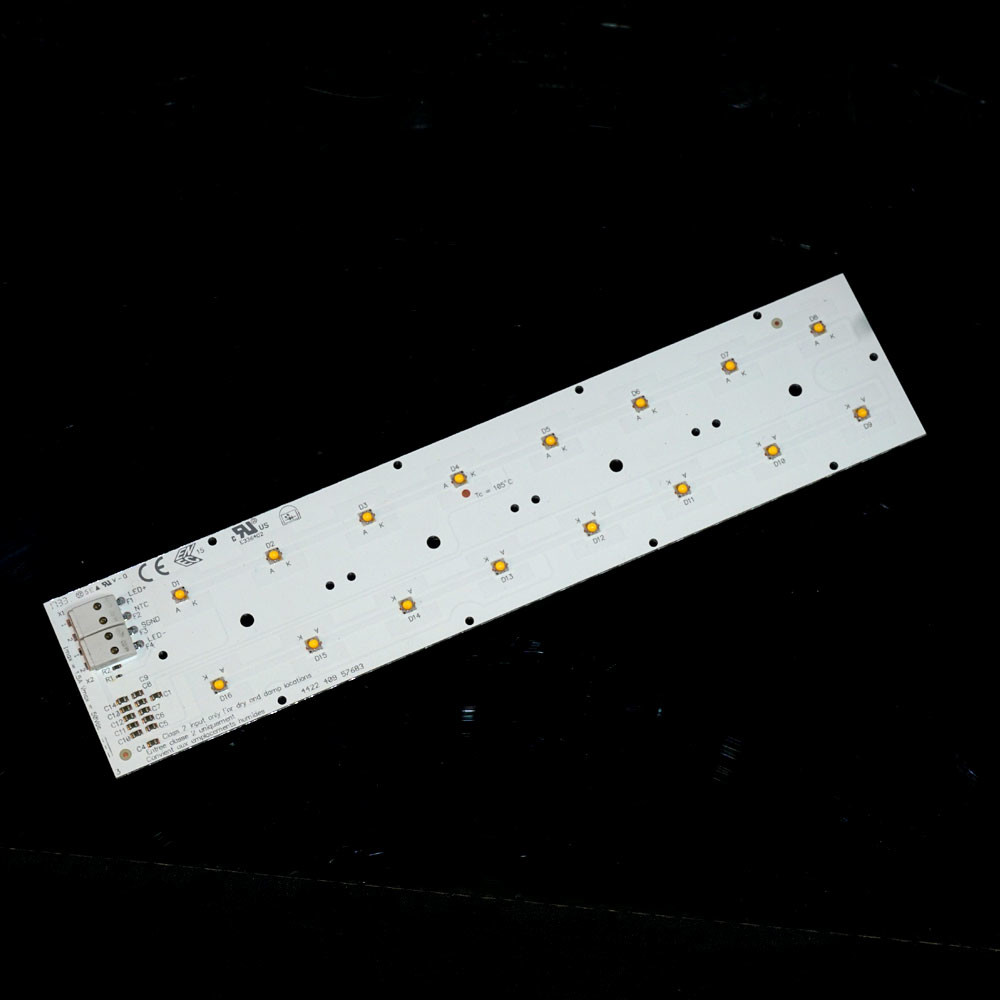

	PCB Board Details PCB Size :223491.6 mm PCB Circuit :16 series 1 parallel Match Led :3535 led

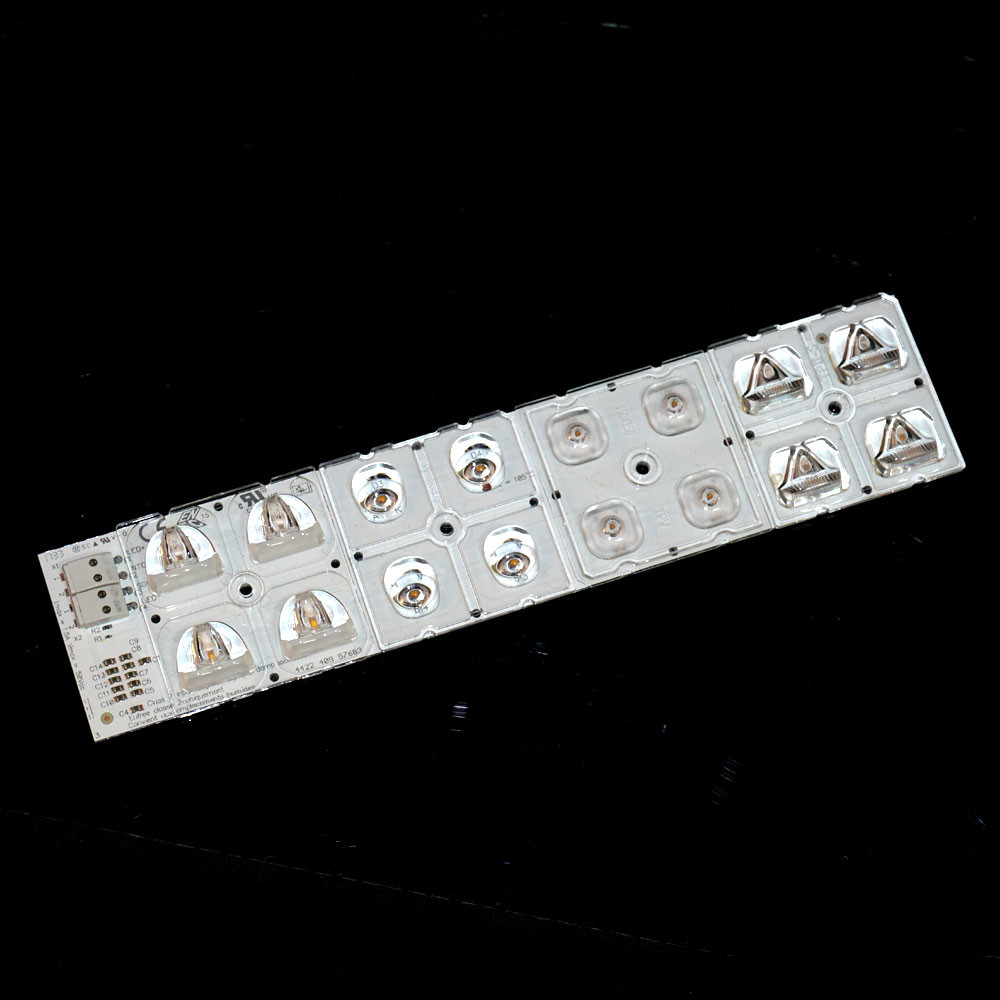

		Led Lens Details Lens Size :50x50mm Lens Angle :136x78,30,60,90,12 degree Lens material :optical grade PCLed Lens Details DK252-16H1-157*57-TPII-S-V Lens Size :252x70mm Lens Angle :136x78 degree Lens material :optical grade PC


			Main parameter:
			LED Light Source	3535 LEDs, 16pcs
			Output Power	30W,40W,50W,60w
			Luminous Flux	4650lm~ 8700lm
			Input Current	350mA,700mA, 1050mA,1200mA
			Input Voltage Range	40-54Vdc
			Lighting Distributions	Type I Short Type II Short Type II Medium 25°, 40°, 60°, 90°
CCT	3000K, 4000K, 5000K, 5700K
LED Chip	LumiLEDs,Cree,Osarm
Product Fixture Size	2527020mm
Packing Details

DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp
