2700K CRI90 Dimmable LED Module Flicker AC127V Desk Light 12W Triac DOB Module

Product Categories
Guangzhou Mankun Electronic Co., Ltd.
Contact Now

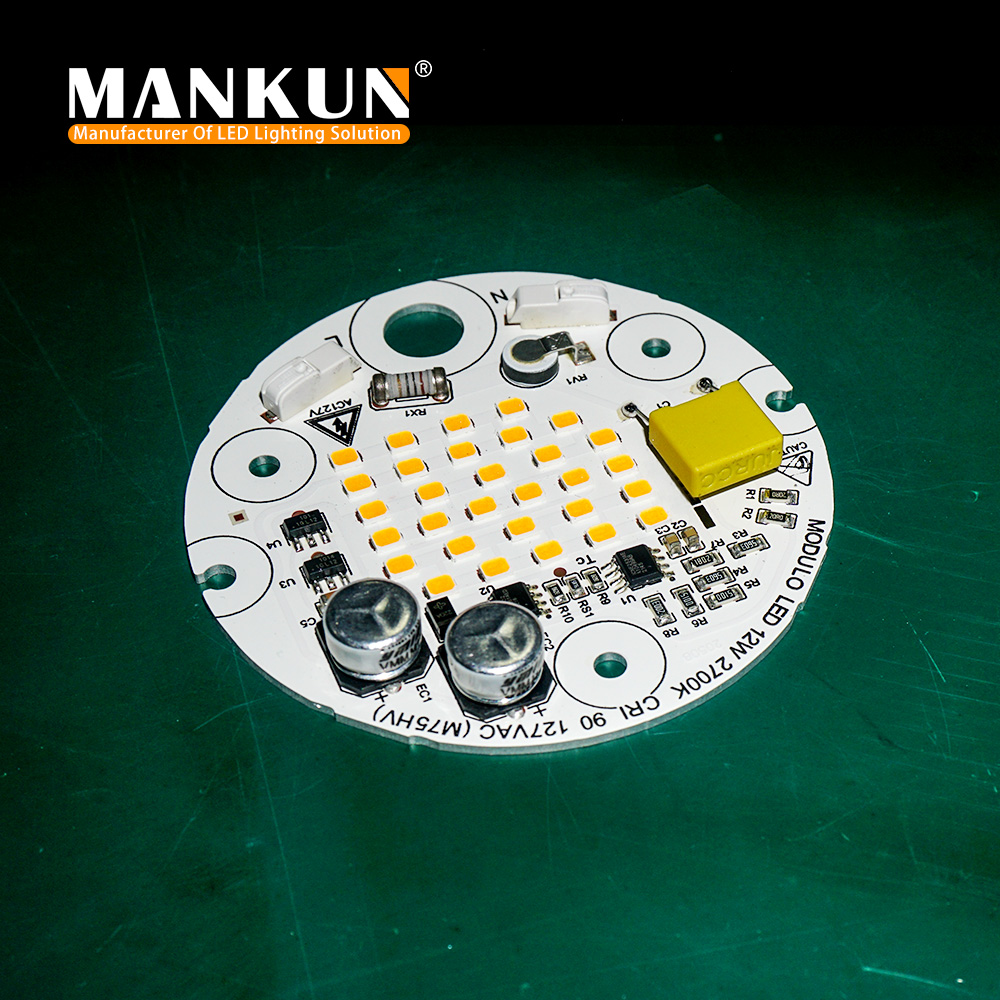

2700K CRI90 Dimmable LED Module Flicker AC127V Desk Light 12W Triac DOB Module

Brand Name : mankun

Model Number : AL20508

Certification : ce, RoHS

Place of Origin : Guangdong, China

MOQ : 3000 Sets

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 5000 Piece/Pieces per Day

Delivery Time : 5-30 work days

Packaging Details : LED module bubble packaging, 25PCS each box, 500PCS a ctns

Power : 13.3W

Color Rendering Index(Ra) : CRI>90

Color Temperature : 2700K CCT

Input Voltage : 127VAC

PCB Size : 7.5*7.5*0.16cm

Application : Desk Lighting module

Contact Now

Flicker AC127V Desk Light 12W Triac DOB Module 2700K CRI90 Dimmable LED Module

Specification of Dimmable led module

Brand Name
 MANKUN
Product Name
MANKUN Adjustable Rotating Cob Triac Dimmable Mini Led Desklight Anti Glare Ceiling Down Light
Driver
Driver ON board
LED Light Source
TYF SMD 2700K CRI 2835 Chip
Reflector Color
Warm White
Beam angle
120°
Item Type
Triac Flicker Dimmable Led Moudle
Power
12W
Color Temperature( CCT )
2700K CCT
Size(mm)
φ75*H9 mm
Voltage
110-127V AC
Application
Home Office/Hotel/Residential/Apartment/Supermarket/Mall/Workshop .etc
Material
Aluminum Base

Features of Dimmable-led module

1. Color temperature adjustable in one fitting can much helpful for customers who only buy one fitting to suit for mounting on any scene.

2. Dimmable with leading or trailing edge dimmers

3. Different CCT and CRI can be changed, and customized solutions are supported.

4. 10mm height can be mounted on a place that is not more than 75mm place.

5. Wide application of higher security.

6. Easy to install.

LED Light Engine of Dimmable-led module

> Improve production efficiency, saving a lot of human resources.
> Large-scale manufacturing, reduce the cost of the entire lamp.
> High-reliability AC direct drive technology, to deal with complex environments.
> ZHAGA interface compatibility.
> Small and flat, flexible structure design.
