Round Celling Light LED Module SMD 2835 Diameter 130mm 12V DC

Name: Round Celling Light LED Module SMD 2835 Diameter 130mm 12V DC
Brand: mankun
Price: 1 USD

China Round Celling Light LED Module SMD 2835 Diameter 130mm 12V DC factory

Brand Name : mankun

Model Number : AL20132

Certification : ce, RoHS, ce, RoHS

Place of Origin : Guangdong, China

MOQ : 1000 Sets

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 100000pcs per Month

Delivery Time : 5-10 work days

Packaging Details : LED module bubble packaging, 10PCS each box, 100PCS a box

Color Temperature(CCT) : 5000K CCT

Input Voltage(V) : 12V DC

Type : ceiliLight Modules

Light source : SMD2835 LED 56PCS

PCB size : Diameter 130mm

Power : 25W

Contact Now

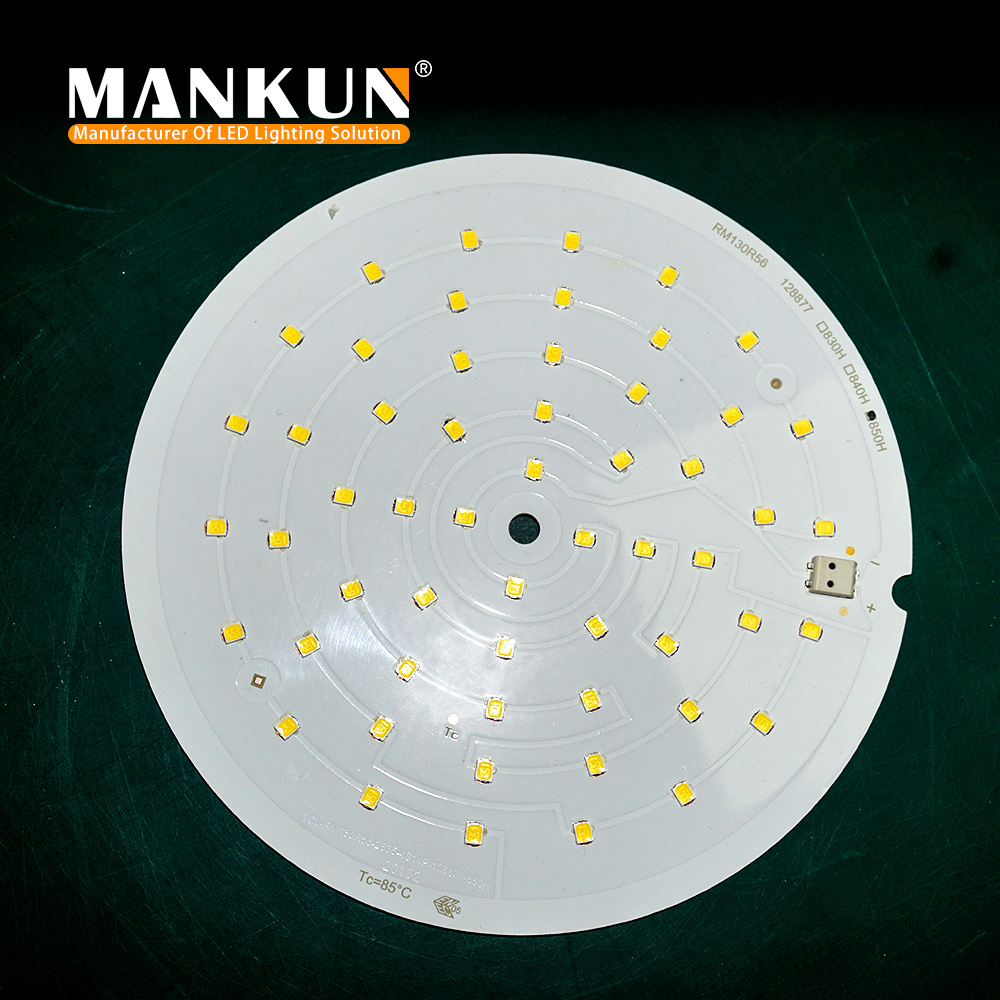

Round SMD 2835 Diameter 130mm Led Pcb Module For Celling Light LED Module

Specification of Ceiling Light led module

Power:	25W
PCB Size:	Diameter 1301301.6mm
LED:	56pcs LumiLEDs LED 2835
CRI:	≥85±5Ra
Lumen efficiency:	161 lm/w
Lumen output:	4000 lm
Lumen depreciation:	5
CCT:	3000K/4000K/5000K
Voltage:	12V
PCB Material:	Aluminum
Bean angle:	120°
Package:	blister package
Certificate:	CE, RoHS
Application:	led ceiling lighting, downlight, all lighting

Features of Ceiling lighting-led module

- Diameter:130mm

- dc12v operated, constant voltage

- 3mm slim

- 120° viewing angle

- Main material: LED, Aluminum board, epoxy

- High light efficiency 161Lm/w

- Warranty 3 years, lifespan<50.000hrs

- Working temperature:-30-45°c

- Available color: WW(2800-3200k),NW(3800-4250k),CW(6000-6500k)

- CRI>85

FAQ of Ceiling Lighting led module

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light orders?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx, or TNT, It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order for led light?

A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
